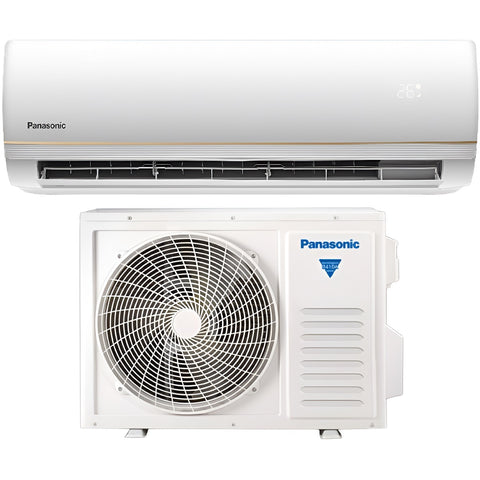

Cool extra large rooms or offices in peak heat. This 2.5 ton split powers through 55°C days. Gold fins resist corrosion.
4-way swing covers wide areas
I Feel remote sets your spot comfort
TriProtect filter removes dust allergens
Hidden display blends into walls
Quiet run suits open spaces
| Spec | Details |
|---|---|
| Capacity | 2.5 Ton |
| Cooling capacity | 28000 BTU (T1) / 24500 (T3) / 23000 (T4) |
| EER | 12.1 (T1) / 8.87 (T3) / 8.12 (T4) Btu/hW |
| Compressor | Rotary R410A refrigerant |
| Voltage | 220-240V running current 10.1-12A |
| Power input | 2312W (T1) / 2762W (T3) |
| Pipe length max | 15m height diff 5m |
| Indoor size | 271 x 1277 x 360 mm |
| Outdoor size | 803 x 978 x 421 mm |
| Ambient max | 55°C |
| Weight net indoor/outdoor | 21.5 / 54 kg |
You cool 450 sq ft steady
Handles hot humid summers
Clean air fights dust buildup
Air flow hits every corner
Efficient power cuts costs
Remote with timer sleep mode
Standard wall mount

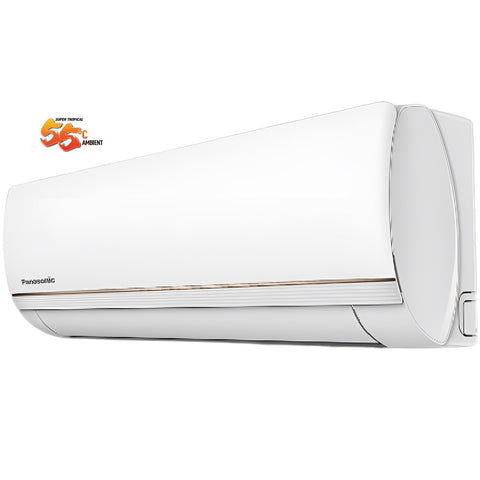

Indoor unit CS-UV30XKF-4

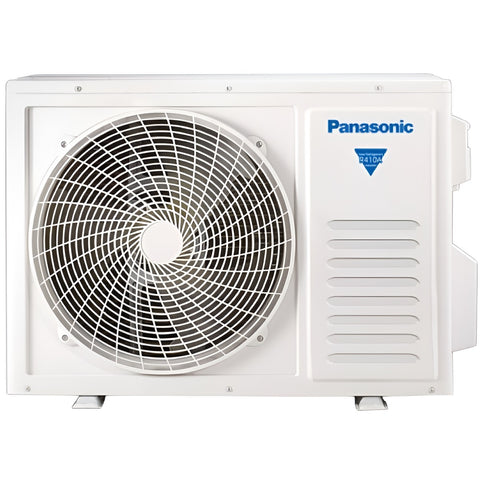

Outdoor unit CU-UV30XKF-4
Remote control
Installation manual
