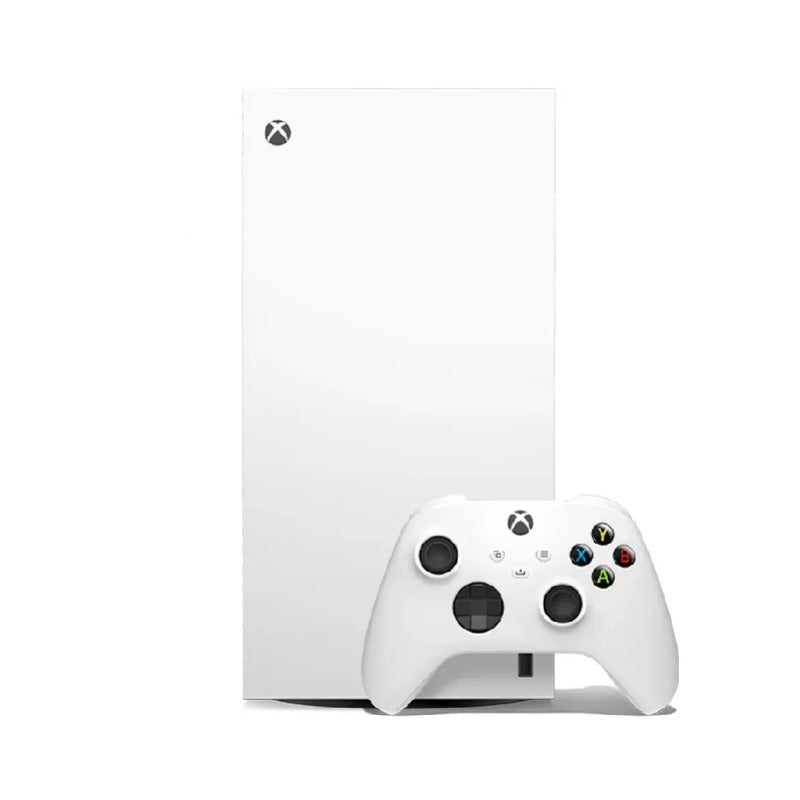

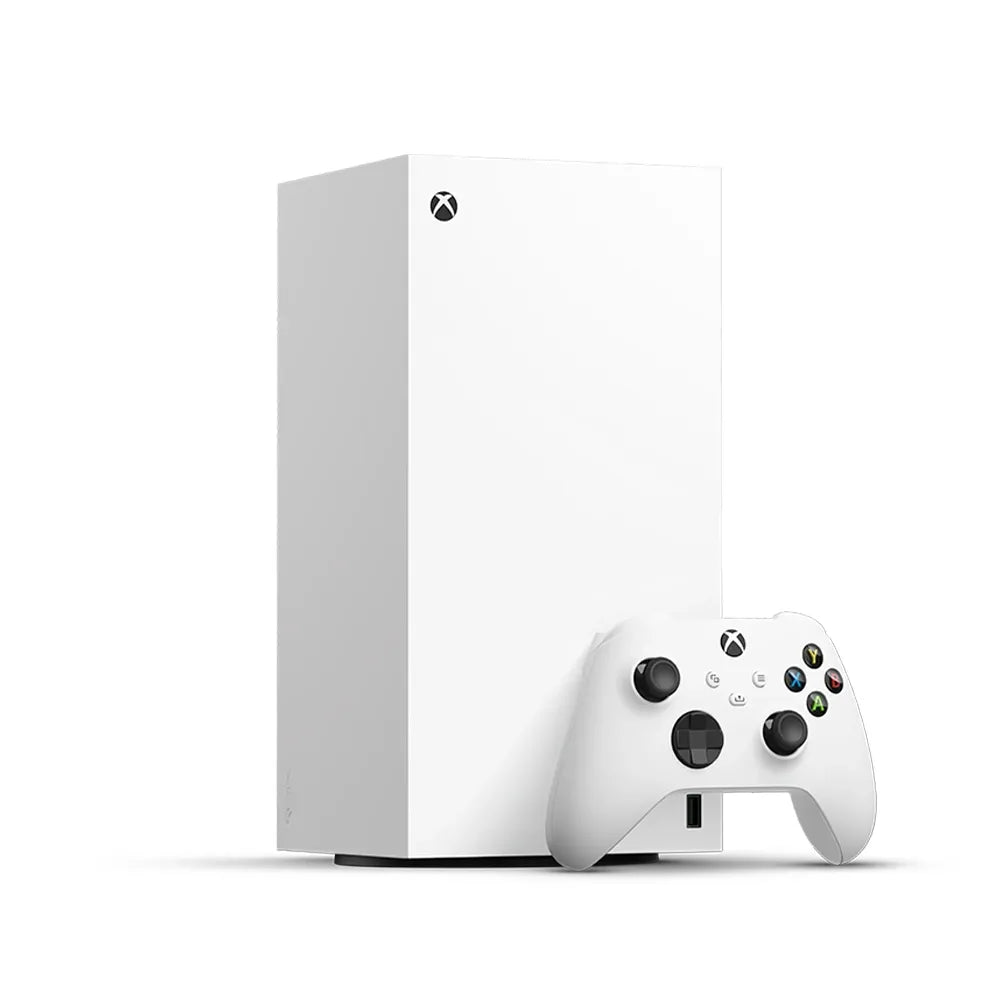

The Xbox Series X 1TB Digital Edition (Japanese Version) is a digital-only gaming console finished in Robot White, built around a custom Zen 2 8-core CPU running at up to 3.8GHz and a custom RDNA 2 GPU delivering 12 TFLOPS across 52 compute units. The console targets true 4K gaming at up to 120 FPS, supports up to 8K HDR output, and includes a 1TB custom NVME SSD for fast load times, with support for storage expansion cards and USB 3.1 external HDDs. The package includes the console, a Robot White Xbox Wireless Controller, AC power adapter, HDMI cable, 2 AA batteries, and manual with inserts.
Custom Zen 2 CPU and RDNA 2 GPU — 8-core CPU at up to 3.8GHz paired with a 12 TFLOPS, 52 CU GPU at 1.825GHz, built on a 7nm enhanced process for high gaming performance.
16GB GDDR6 Memory — High-bandwidth memory across a 320-bit bus, delivering up to 560 GB/s for fast data access during gameplay.
1TB Custom NVME SSD — Fast internal storage with I/O throughput of 2.4 GB/s raw and 4.8 GB/s compressed, supported by a custom hardware decompression block. Expandable via 1TB Storage Expansion Cards or USB 3.1 external HDDs (sold separately).
True 4K Gaming, Up to 8K HDR — Targets true 4K resolution at up to 120 FPS, with HDMI 2.1 features including Auto Low Latency Mode, Variable Refresh Rate, and AMD FreeSync.
Premium Audio Support — Dolby Digital 5.1, DTS 5.1, Dolby TrueHD with Atmos, and up to 7.1 L-PCM sound output.

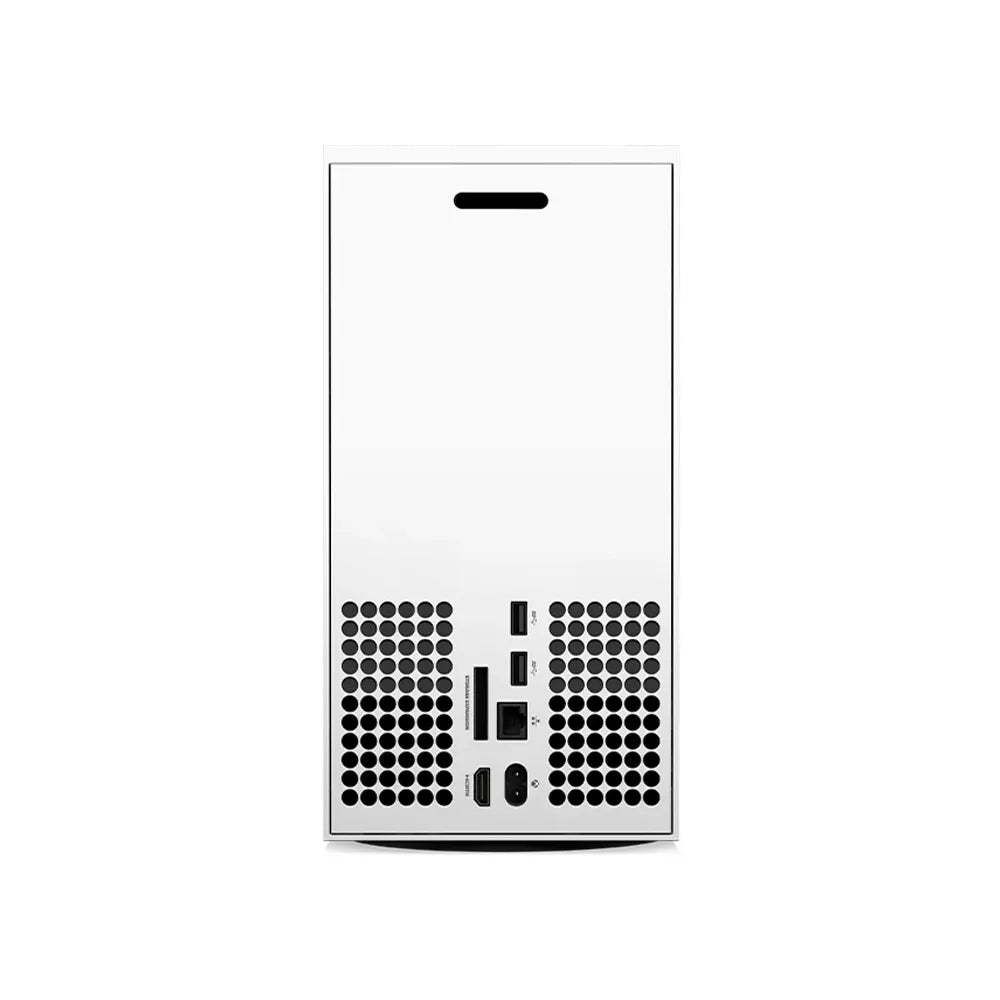

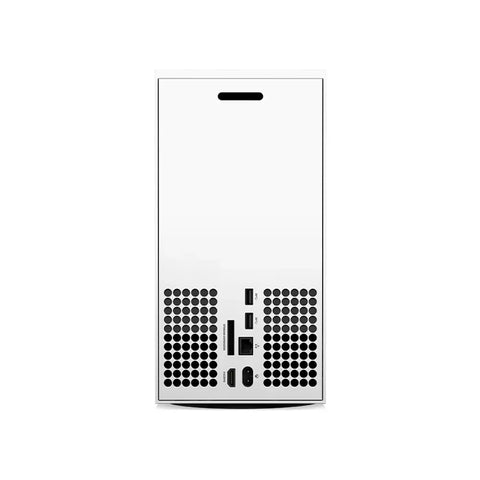

Comprehensive Connectivity — 1x HDMI 2.1 port, 3x USB 3.1 Gen 1 ports, 802.11ac dual-band wireless, Gigabit Ethernet, and a dedicated dual-band Xbox Wireless radio for accessories.
| Specification | Details |
|---|---|
| Brand | Microsoft |
| Model | Xbox Series X – 1TB Digital Edition |
| Region | Japanese Version (R1) |
| CPU | 8-Core Custom Zen 2, 3.8 GHz (3.6 GHz w/SMT) |
| GPU | Custom RDNA 2, 12 TFLOPS, 52 CUs @ 1.825 GHz |
| Process | 7nm Enhanced |
| Memory | 16 GB GDDR6, 320-bit bus |
| Memory Bandwidth | 10 GB @ 560 GB/s, 6 GB @ 336 GB/s |
| Internal Storage | 1 TB Custom NVME SSD |
| I/O Throughput | 2.4 GB/s Raw, 4.8 GB/s Compressed |
| Expandable Storage | 1TB Storage Expansion Card support, USB 3.1 external HDD support |
| Gaming Resolution | True 4K |
| HDR | Up to 8K HDR |
| Optical Drive | 4K UHD Blu-Ray |
| Performance Target | Up to 120 FPS |
| HDMI Features | Auto Low Latency Mode, Variable Refresh Rate, AMD FreeSync |
| Audio Support | Dolby Digital 5.1, DTS 5.1, Dolby TrueHD with Atmos, up to 7.1 L-PCM |
| HDMI Port | 1x HDMI 2.1 |
| USB Ports | 3x USB 3.1 Gen 1 |
| Wireless | 802.11ac dual band |
| Ethernet | 802.3 10/100/1000 |
| Accessories Radio | Dedicated dual-band Xbox Wireless radio |
| Dimensions | 15.1 x 15.1 x 30.1 cm (5.94 x 5.94 x 11.85 in) |
| Weight | 4.4 kg (9.8 lbs) |
| Box Contents | Console, Xbox Wireless Controller (Robot White), AC Power Adapter, HDMI Cable, 2x AA Batteries, Manual and Inserts |
